40 PPA

Cyrus have been designing and building phono preamplifiers in the UK for a long time now, so when we say that the 40 PPA is our best yet, and one of the best in the market, we say it with confidence!
As with all 40 series products, we have completely re-imagined the design of the product and audio flow from beginning to end, carefully shielding the very sensitive signals from any interference.

Enjoy your record collection like never before.

The 40 PPA provides complete flexibility with your choice of cartridge. Whether you enjoy the ease of a Moving Magnet cartridge or the detail and ability to match the output of a Moving Coil cartridge, the 40 PPA has got you covered.

One of the key features of the 40 PPA is the ability to connect up to four sources, allowing the listener to easily switch between turntables, arms or cartridges as desired. Each input can be adjusted between Moving Magnet and Moving Coil cartridges, for which specific gain (in 5dB steps), resistance and capacitance can be be set independently.

The 40 PPA enjoys a high capacity and very low noise DC power supply that enables the preamplifier to provide an extremely wide dynamic range ensuring extended signal levels long before clipping. Attention to circuit layout and component placement ensures a very low noise floor to further expand musical dynamics.

Depending on your system set up, the 40 PPA provides both balanced XLR outputs, or unbalanced RCA outputs.

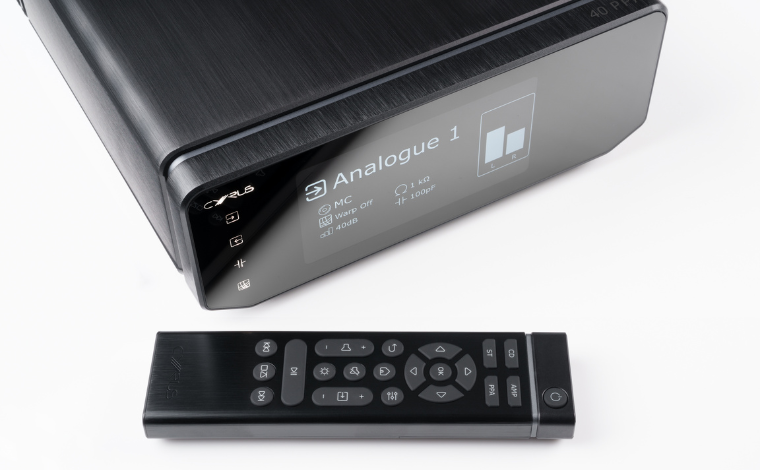

The custom designed remote allows for full setup and operation of the 40 PPA as well as other 40 series Cyrus products.

Specification

  • Connect up to 4 turntables
  • All inputs compatible with MC & MM cartridges
  • MC inputs configurable for gain, load and capacitance
  • Stereo output level meters with peak hold to optimise MC gain
  • Warp filter to reduce bass excursion on warped records

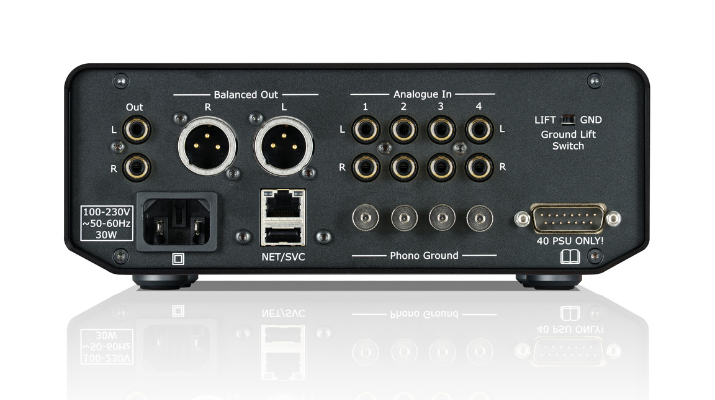

  • XLR balanced and RCA outputs
  • Ground lift switch to help eliminate ground hum problems
  • Remote control operation
  • 40 PSU compatible
  • RJ45 Ethernet For Firmware Updates
  • USB-A For Firmware Updates
  • Size (H x W x D) 88 x 220 x 365 mm (3.46” x 8.66” x 14.37”)
  • Weight 4.8kg (10.6lbs)
  • EAN 5060020435010
  • 5 Year Warranty
