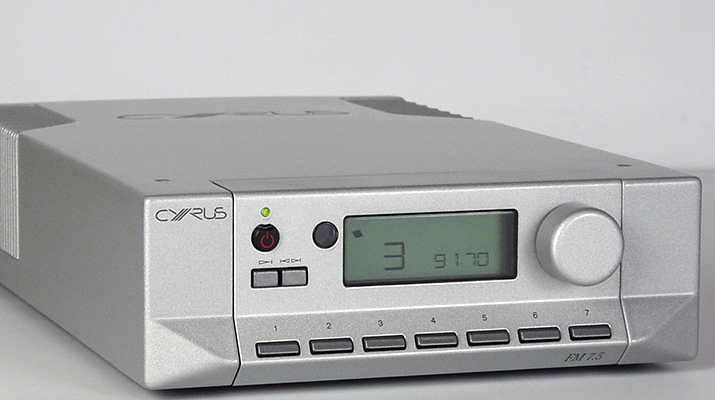

FM7.5
A top quality FM radio tuner featuring 29 station memory settings, remote control compatibility and a large clear display. Fully compatible with our Master Control System MC BUS, FM 7.5 may also be controlled remotely through our multiroom components.
In spite of the recent explosion in multi-media and audio-visual interests, it is still true to say that radio broadcast continues to offers a great deal of entertainment and pleasure to people. This is a highly interactive median, in that the listener is more intimately involved in and participates mentally in the broadcast program. The FM7.5 is designed to capture the true spirit of the transmitted material with the least amount of alteration to the original signal.
The sensitive, low distortion front-end design of the FM7.5 enables this product to enjoy wide dynamic range and highly linear characteristics, reducing intermodulation artefacts that can be harmful down the line in the demodulation process. The generous front-end Power gain assists in achieving low noise operation at low signal levels. The triple stage IF strip of the Cyrus FM7.5 is a highly linear design which is substantially responsible for the low distortion behaviour of the tuner as a whole. Complex ground plane design and Power supply topology are key elements in achieving the superior performance of the FM7.5
Specification
- S/N Ratio – 5dBuV (Mono)
- S/N Ratio – 30dBuV (Stereo)
- Ultimate S/N Ratio – 84dB (Mono)
- Ultimate S/N Ratio – 76dB (Stereo)
- T.H.D – 0.05% @ 50kHz deviation (Mono)
- T.H.D – 0.07% @ 50kHz deviation (Stereo)
- Channel separation – >50dB
- Pilot tone suppression – 90dB
- Weight – 2.7kg
- Dimensions – H73 x W215 x D360mm
